Corrugated Box Basics: ECT Ratings, Box Styles, and Flute Types Explained

“Just send me a box” is one of the more expensive sentences in a purchasing manager’s vocabulary. Corrugated looks like a commodity until a pallet arrives with crushed corners, a shipment fails a carrier’s compression test, or a plant discovers it’s been paying for triple-wall strength on a product that never needed it. For manufacturers and food processors, getting the box spec right — ECT rating, box style, and flute type — is one of the simplest ways to cut cost and damage claims together.

ECT: What the Number on the Box Actually Means

ECT stands for Edge Crush Test, and it measures how many pounds of force per linear inch a strip of corrugated board can withstand on its edge before it buckles. It predicts how a stack of boxes holds up under the pallet above it, which is why it matters more for warehousing and freight than raw material thickness. ECT-32 is the most common rating, covering most single-wall shipping needs and carrier minimums. ECT-44 steps up to double-wall construction for heavier loads or taller pallet stacks, and ECT-48-plus is reserved for dense, heavy, or high-value products needing top-tier crush resistance. The mistake most manufacturers make isn’t choosing too low a rating — it’s defaulting to a higher one than needed and paying more per box, pallet after pallet, for strength that’s never tested.

Box Styles: RSC, Half-Slotted, and Full Overlap

The Regular Slotted Container, or RSC, is the standard shipping box: its outer flaps meet at the center when folded, and it accounts for the large majority of corrugated boxes in use today. A Half-Slotted Container, or HSC, is essentially an RSC with the top flap set removed, leaving an open-top tray — useful for manual pack lines or applications adding a separate lid or bulk liner. A Full Overlap Slotted Container, or FOL, uses flaps sized to the full width of the box rather than half, so the outer flaps overlap completely and form a reinforced double-ply layer on top and bottom. That overlap adds puncture resistance and spreads compression more evenly, which matters for products over roughly 40 pounds or rough LTL handling. For most standard shipments, RSC is the right default; HSC and FOL earn their added cost in specific handling or weight situations.

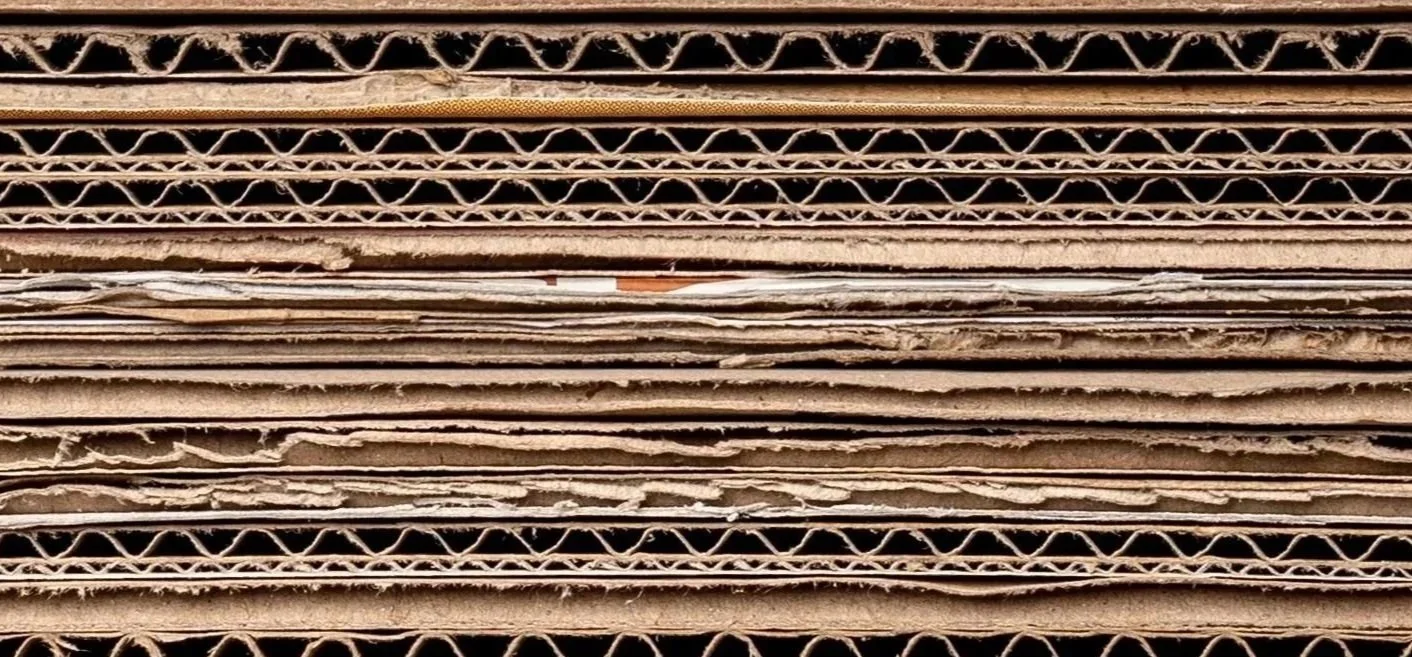

Flute Types: Matching Flute Size to the Job

Flute letters (A, B, C, E, F) refer to the order they were invented, not their size, which trips up a lot of first-time buyers. A-flute is thickest, offering the most cushioning and stacking strength, suited to fragile or heavy industrial goods where box volume isn’t a constraint. C-flute is the most widely used profile in North America, balancing cushioning, stacking strength, and print quality for general shipping and retail-ready cases. B-flute is thinner with strong flat crush resistance and a smooth print surface, often used for retail packaging and canned goods. E-flute and F-flute are progressively thinner, built for lightweight products and tight storage space rather than heavy-duty protection. Drop and stacking forces call for A or C flute; shelf-ready presentation points toward E or F.

Getting the Sizing Right

Even the correct ECT and flute won’t save money if the box is oversized. Box dimensions are measured as inside length, width, and height, and a well-sized box leaves only two to three inches of extra room for cushioning. That matters because most carriers price by dimensional weight — length times width times height divided by a standard factor — so an oversized box can cost more to ship even at the same product weight. Oversized boxes also need more void fill and give products more room to shift in transit, raising cost and damage claims can help identify where a current spec is bigger or stronger than the product requires.

Frequently Asked Questions

What ECT rating do I actually need?

It depends on product weight, pallet stack height, and how the shipment is handled in transit. ECT-32 covers most single-wall, moderate-weight shipments; ECT-44 and above is worth the added cost for heavier loads or taller stacking.

What’s the difference between a half-slotted container and a regular slotted container?

An RSC has flaps on both top and bottom that fold closed and meet in the center. An HSC has flaps on the bottom only, leaving an open top — common for manual packing or applications using a separate lid or liner.

Which flute size is most common and why?

C-flute is the most widely used profile because it balances cushioning, stacking strength, and print quality for most general shipping and retail-ready applications.

Can I mix flute types or ECT ratings across different products in my facility?

Yes, and many manufacturers do — a facility shipping both heavy components and lightweight retail-ready cartons often needs two or more box specs rather than one-size-fits-all.

How do I know if I’m paying for more box than I need?

If a box has never failed a compression test or was specified years ago for a product that’s since changed, it’s worth a review — a lower ECT or lighter flute may perform identically for less cost.

The right box spec is rarely the most expensive one — it’s the one matched to what’s actually being shipped. Contact GenPac to review your current corrugated program and see where ECT rating, box style, or flute type could be right-sized.
